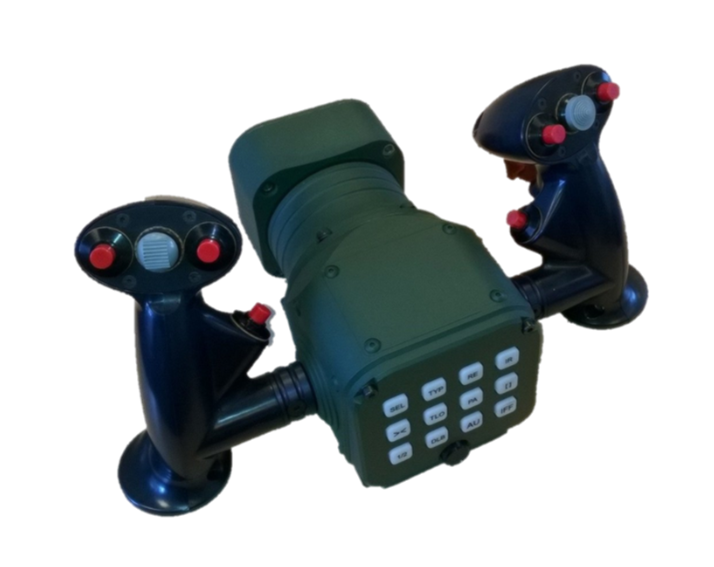

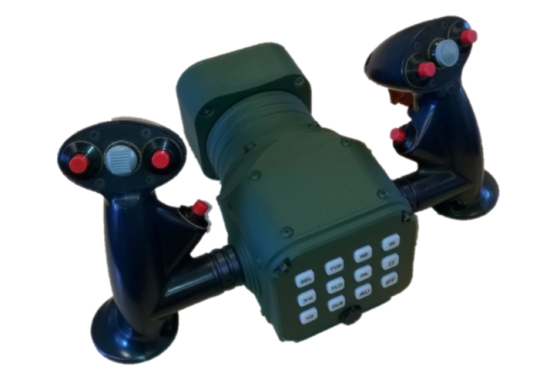

MN2O-W2R manipulator – Wolant

Modern and complex weapon control systems require the use of ergonomic and precise manipulators for weapon drive control. The presented manipulator is an excellent example of a modern, durable product adapted to the needs of today’s soldier. It provides intuitive control of the drives and guarantees the highest level of operational safety.

Features:

Two-axis yoke-type manipulator,

Azimuth movement range ±30°, elevation range ±20°, resolution of each axis: ±1024,

Contactless magnetic encoders offering virtually unlimited durability,

Up to 10 button positions on the grip, convenient switches of trimmer and hat-switch type,

Front panel keyboard with adjustable backlight brightness, possibility of specialized button labeling,

Keyboard status monitored by the control system – possibility of presenting information using button colors – RGB backlight,

Two-step, double-action trigger with protection against accidental pressing on each of the grips,

Convenient drive activation and lock button in case of unintended manipulator movement,

Ergonomic aluminum handle, hard-anodized to ensure maximum durability and aesthetics,

Firm grip and excellent drive control even in the toughest operator working conditions.
