Description
Modern and complex weapon control systems require the use of high-class video systems that enable battlefield observation, system status imaging, and control through an intuitive user interface. Situational awareness on the battlefield is one of the most important aspects of modern operations.

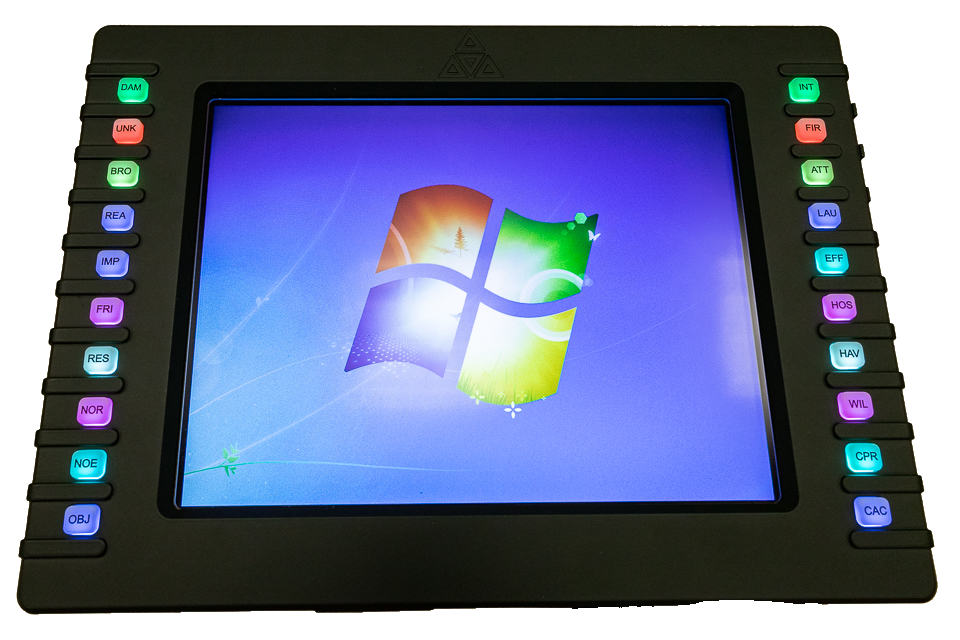

The Mobile Operator Console (MPO) enables intuitive user interaction with the superior system. MPO is equipped with advanced security features, which allow it to meet the strict requirements of the SDIP-27 Level B emission security standard.
This enables the secure processing of classified information on the MPO.
Technical data
Screen diagonal:
12.1”
12.1”
Screen resolution:
1024 x 768 (XGA)
1024 x 768 (XGA)
Screen contrast:
700:1
700:1
Backlight brightness:
2000 cd/m2
2000 cd/m2
Viewing angles:
+80° ~ -80° (H),
+80° ~ -80° (V)
+80° ~ -80° (H),
+80° ~ -80° (V)
Number of matrix colors:
16.2M
16.2M
Working temperature:
from -30°C to +50°C
from -30°C to +50°C
Limit temperature:
from -40°C to +60°C
from -40°C to +60°C
Zasilanie:
24V DC (18 – 36V DC)
max. 3A;
24V DC (18 – 36V DC)
max. 3A;
Weight:
5,6kg ±2,5%
5,6kg ±2,5%
Number of button:
2 x 10
2 x 10
Number of connectors on the housing:
2 + 1 service
2 + 1 service
Mechanic and climatic class:
N.13‑O‑I‑A wg NO-06-A101÷108
N.13‑O‑I‑A wg NO-06-A101÷108
Standards:
NO-06-A107:2005,
NO-06-A103:2005
NO-06-A107:2005,
NO-06-A103:2005
Protection against disclosure:
SDIP-27 Level B
(TPZU-2)
SDIP-27 Level B
(TPZU-2)
Dimensions:
368mm x 272mm x 64mm
(including connectors and buttons)
368mm x 272mm x 64mm
(including connectors and buttons)
EMC:
NO-06-A200:2012
(KCE-02, KRE-02, KRS-02,
KCS-01, KCS-06, KCS‑07,
KCS-08)
NO-06-A200:2012
(KCE-02, KRE-02, KRS-02,
KCS-01, KCS-06, KCS‑07,
KCS-08)
