Description

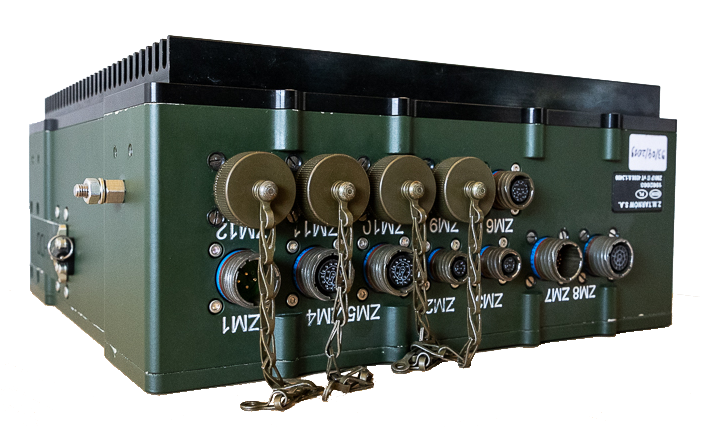

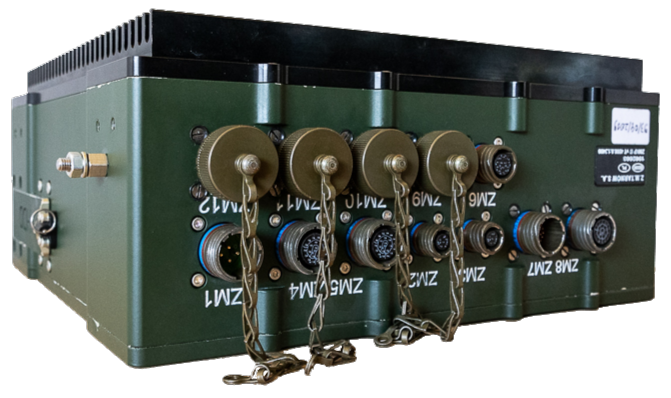

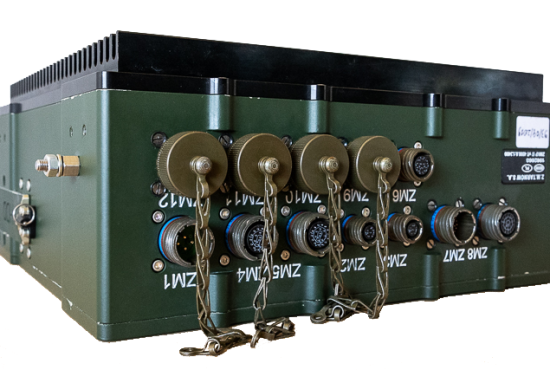

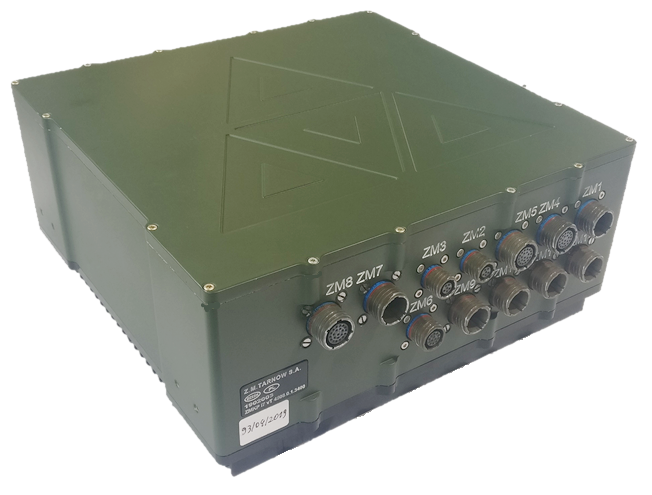

Modern and complex fire control systems require the use of high-class computers capable of processing classified information. The onboard computer ZMKP-I7 vT enables quick execution of necessary calculations as well as operation and coordination of subordinate devices. Thanks to the applied security measures, it meets the strict requirements of the emission security standard SDIP-27 Level B. The ZMKP-I7 vT computer is a modification of the ZMKP-I7 computer.
Technical data
Processor:
Intel Core i7 3612QE Quad-Core 2.1 GHz
Intel Core i7 3612QE Quad-Core 2.1 GHz
removable hard drive:
SSD, 256GB (MLC)
SSD, 256GB (MLC)
memory RAM:
8 GB
8 GB
Power supply:
24V (18V – 36V)
24V (18V – 36V)
Power consumption:
≤ 290W
≤ 290W
Mechanical climate class:
N.13-O-I-A wg NO-06-A101÷108
N.13-O-I-A wg NO-06-A101÷108
Electromagnetic compatibility:
NO-06-A200:2012
(KRE-02, KCE-02, KRS-02, KCS-01, KCS-06, KCS-07, KCS-08)
NO-06-A200:2012
(KRE-02, KCE-02, KRS-02, KCS-01, KCS-06, KCS-07, KCS-08)
Protection against revealing emissions:
SDIP-27 Level B
(TPZU-2)
SDIP-27 Level B
(TPZU-2)
Working temperature:
from -30°C to +50°C
from -30°C to +50°C
Limit temperature:
from -40°C to +60°C
from -40°C to +60°C
